When printing you may at some point experience a paper misfeed or jam. The below video and guide of common Jam Codes will help you resolve this issue quickly by helping you determine its cause.
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language.
Paper misfeeds can usually be easily resolved by performing the following:
- Open and reclose the rear door with the small grey clips to ensure it is fully closed.
- Press form feed, then paper reset button.
- Check there are no print jobs remaining in the print job queue (SG500/1000 driver).
- Very gently wipe the Horizontal Encoder strip with a lint free cloth and some denatured alcohol.
- Check that there is no paper caught in the rear paper feed rollers by unclipping the two grey clips on the rear of the printer.
- If there is no paper debris in the printer, the error may be caused by an accumulation of paper dust or ink stain on the feed belt. Clean the paper feed belt with a lint free cloth and denatured alcohol. If the paper feed error persists, you can check what is causing the error by verifying the jam code.
You can determine the Jam Code as it will be displayed near the top right of the LCD panel. In the example below it is 09.
-
Jam 001
This error signifies that the paper slipped when being fed or the paper tray is not set correctly. As such we would recommend you check and perform the following:
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language
- Check that the paper is correctly loaded in the tray.
- Remove and fan the paper to remove any static cling, and re-load.
- Reduce or increase the amount of paper loaded.
- Confirm that the paper is not curled in the tray.
- Confirm that the paper tray is correctly installed.
- Reset the printer back to Default (Menu > System Setting > administrator tools > Reset All Settings > Reset All settings).
- Clean the paper feed belt in its entirety.
- Clean the paper feed rollers ensuring they are not coated in paper dust.
- Check that your brand of paper does not cause excessive paper dust.

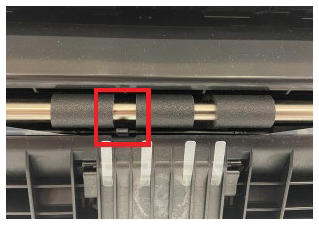

- Confirm that the rear paper feed rollers are not rubbing against the trailing edge sensor guide.
Below is the Correct Position:
-
Jam 005
This error signifies that the Printer has detected that the paper is longer than what has been selected in the Print Settings. As such we would recommend you check and perform the following:
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language- Confirm the paper size in the tray and Print Manager paper size settings match and are correct.
- Reset printer back to default settings.
- Confirm there is no damage to the trailing edge Guide. This is the thin plastic guide that runs just under the rear rubber paper feed rollers. The trailing edge guide should look like this:
-
Jam 006
This error signifies that the paper slipped when being fed or the bypass tray is not set correctly. As such we would recommend you check and perform the following:
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language
- Check that the paper is correctly loaded in the bypass tray.
- Remove and fan the paper to remove any static cling, and re-load.
- Reduce or increase the amount of paper loaded.
- Confirm that the paper is not curled in the tray.
- Confirm that the bypass tray is correctly installed, as such remove and reinsert the bypass tray.
- Reset the printer back to Default (Menu > System Setting > administrator tools > Reset All Settings > Reset All settings).
- Clean the paper feed belt in its entirety.
- If paper jam occurred prior, check for any remaining paper debris in the printer.
- Clean the registration sensor as it can sometimes get covered in paper dust depending on the paper used.
-
Jam 009
This error signifies that the Printer isn’t detecting any paper being fed into the printer. As such we would recommend you check and perform the following:
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language- Clean the paper feed belt.
- Clean the registration sensor as it can sometimes get covered in paper dust depending on the paper used.
-
Jam 014, 016 and 017
This error signifies that there is a carriage jam or that the jam remains. As such we would recommend you check and perform the following:
To view video subtitles in your language, please press c (subtitles/closed captions), followed by Settings > Subtitles/cc and then select your language
- If paper jam occurred prior, check for any remaining paper debris in the printer.
- Check for any damage or obstructions within the printer.
- Check for any damage to the sides of the paper feed belt.
- Check if the white carriage guides located behind the print head have become dislodged or damaged.
- Gently wipe the horizontal encoder with a lint free cloth and alcohol in case grease or debris has come in contact with it.
- Clean paper feed belt.
- Clean paper feed rollers.
- Clean registration sensor.
If you are still experiencing issues or have further questions, please contact our Sawgrass Care Team for assistance by click the 'Help' button on the bottom right of the page, or click here.
