Configuring Adobe Illustrator with the correct color and print settings helps ensure consistent, accurate results when printing with your Sawgrass printer.
This guide explains how to configure Adobe Illustrator on a Windows computer, including setting up color management, creating documents in RGB color mode, and printing through Sawgrass Print Utility.
Note: Screens and menus may vary depending on your version of Adobe Illustrator and Windows. However, the recommended settings remain the same.
1. Configure Illustrator Color Settings
Before creating or printing your designs, ensure Adobe Illustrator is configured to use the recommended RGB color settings.

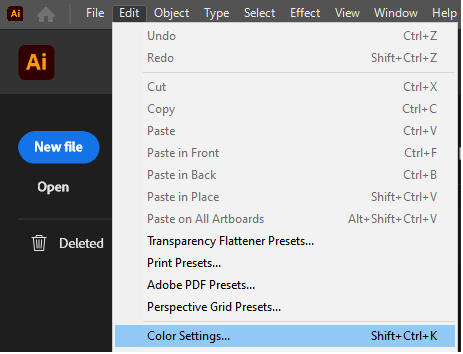

Step 1: Open Adobe Illustrator and navigate to Edit > Color Settings.
Step 2: In the Color Settings window, check whether the Sawgrass_sRGB preset is available.
- If the preset is available, select it.
- If the preset is not available, manually configure the settings as shown in the image below.
Note: You may need to select Show More Options to display all available color management settings.

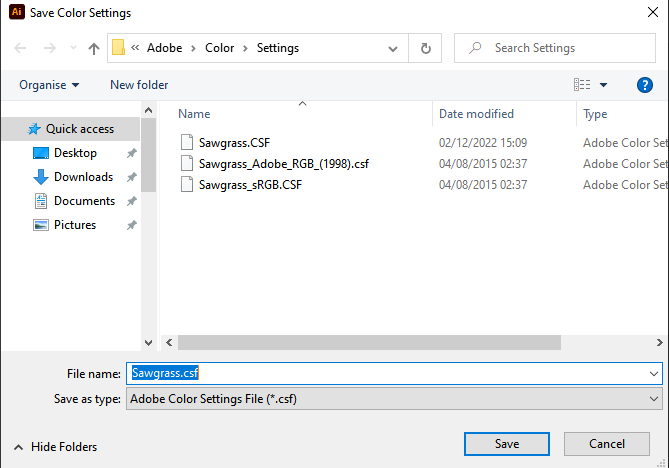

Step 3: Once the settings have been configured, click Save and enter Sawgrass as the preset name.
Step 4: Click OK to save your settings and close the Color Settings window.
Your Illustrator color settings are now configured.
2. Create a New Document with the Correct Settings
When creating a new document, it is important to use RGB color mode to ensure compatibility with the recommended Sawgrass printing workflow.
Step 1: In Adobe Illustrator, navigate to File > New.

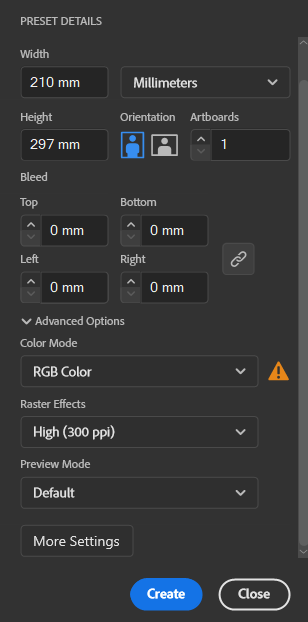

Step 2: In the New Document window, expand Advanced Options and configure the following settings:
|
Step 3: Click OK or Create, depending on your Illustrator version, to create your document.
Your new document is now configured with the recommended settings.
3. Manage Color Profiles When Opening or Importing Images
When opening or importing artwork into Adobe Illustrator, you may encounter color profile warnings.
These warnings appear when an image does not contain an embedded color profile or when its existing profile differs from Illustrator's working color space.
To maintain a consistent color workflow, follow the recommendations below.
Missing Profile Warning

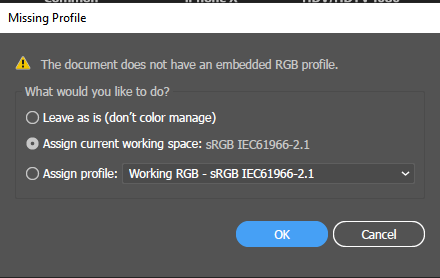

If Illustrator displays a Missing Profile warning:
- Select Assign current working space: sRGB IEC61966-2.1.
- Click OK to continue.
Embedded Profile Mismatch Warning

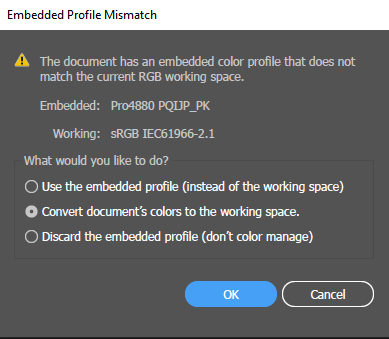

If Illustrator displays an Embedded Profile Mismatch warning:
- Select Convert document's colors to the working space.
- Click OK to continue.
Important: Converting an image to a different color space may affect its appearance. For the recommended Sawgrass workflow, ensure your artwork uses the sRGB color space before printing.
4. Verify the Document Color Mode
Previously created documents or imported artwork may retain their original color settings.
Before printing, verify that your document is using RGB color mode.

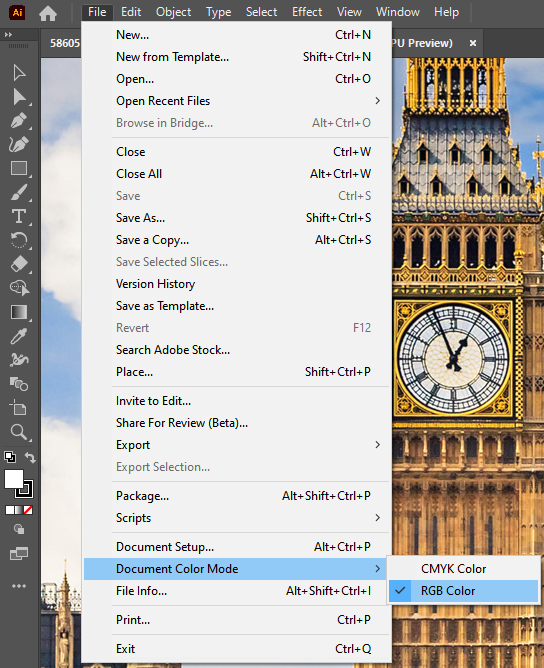

Step 1: Navigate to File > Document Color Mode.
Step 2: Ensure RGB Color is selected.
A check mark should appear beside RGB Color, confirming that your document is configured correctly.
Note: If CMYK Color is currently selected, click RGB Color to change the document's color mode.
5. Configure Illustrator Print Settings
Once your document and color settings have been configured, you are ready to print through Sawgrass Print Utility.
Step 1: In Adobe Illustrator, navigate to File > Print.
Step 2: In the Print window, configure the following settings:
|
Step 3: Select Color Management from the available print settings.

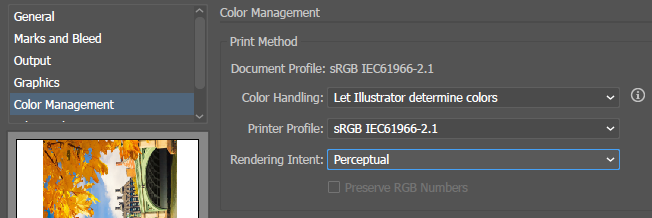

Step 4: Configure the following color management options:
|
Step 5: Once the settings have been verified, click Print.
Your print job will be sent to Sawgrass Print Utility, where you can select the appropriate printer, paper, substrate, and other print settings before proceeding.
