How-To: Cleaning the Paper Registration Sensor (SG500/1000)

Cleaning this sensor is very straight forward!

We recommend doing this occasionally as paper dust can accumulate on the sensor and can result in paper misfeed errors



To clean the sensor, we recommend using either a small brush (such as a small paint brush) or some compressed air. Alternately, simply blowing on it can also help clear any paper dust or debris.



  1. Power the printer Off.

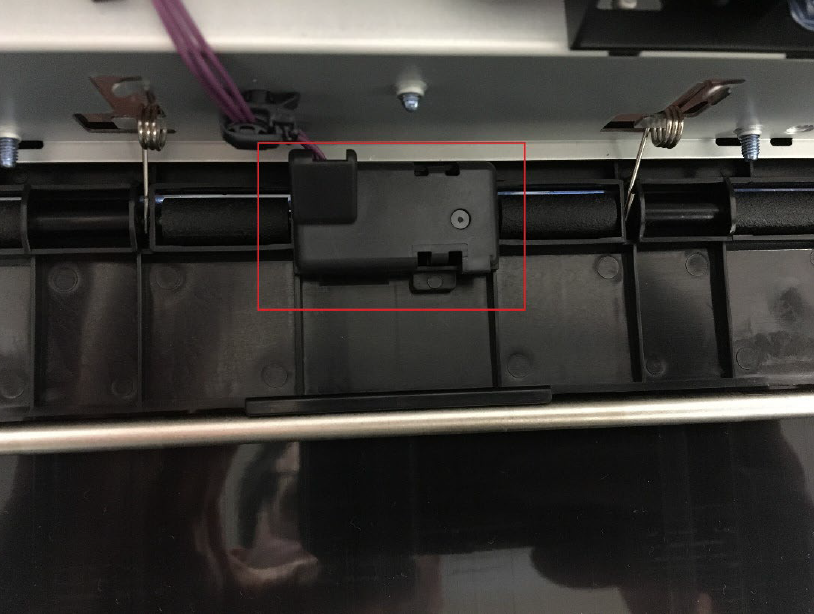

  2. Remove the sensor cover from the middle of the rollers.

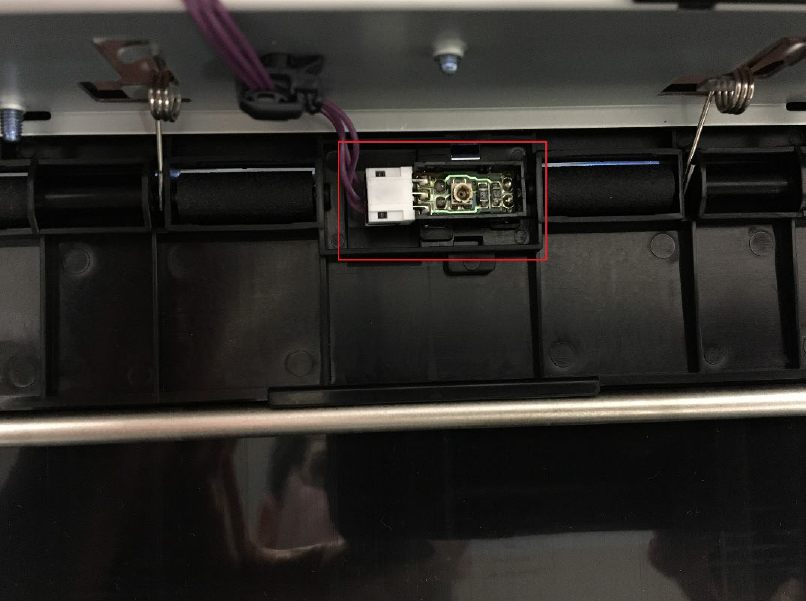

  3. Remove the sensor

  4. Blow out or remove using a brush any paper dust that may prevent the sensor from working properly.

  5. Reinsert the sensor and power the printer On.



If you are still experiencing issues or have further questions, please contact our Sawgrass Care Team for assistance by click the 'Support' button on the bottom right of the page, or click here.
