How to Manually Set a Static IP Address

Assigning a static IP address ensures that your printer always uses the same IP on the network, which helps maintain reliable communication. However, this setup requires manual configuration and, if not properly managed, can lead to IP address conflicts.

If your printer frequently goes offline or becomes unresponsive, it may be due to its IP address changing. This typically happens when the printer receives a new IP address from the access point it's connected to. In such cases, we strongly recommend setting a static IP address.

The most reliable method is to assign the static IP address through DHCP reservation, which is done on your router or access point. If you're unsure how to do this, please consult your network administrator.

If you choose this DHCP method, no changes are needed on the printer itself. However, you may need the printer’s MAC address, which can be found by navigating:

Menu > System Settings > Interface Settings > Network > Machine IPv4 Address > MAC. Add
(Use the left selection key under the LCD panel.)



Alternatively, if you prefer to set the static IP address directly from the printer menu instead of via your router or access point, follow the instructions below. Please note: this guide assumes the printer is already connected to your network.

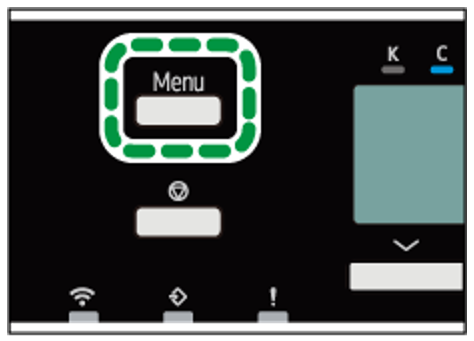

  1. Press the [Menu] key.

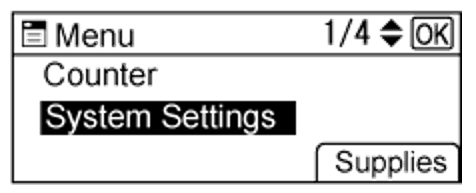

  2. Press the [] or [] key to display [System Settings] , and then press the [OK] key.


  3. Press the [] or [] key to display [Interface Settings], and then press the [OK] key.

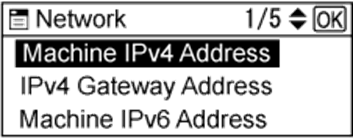

  4. Press the [] or [] key to display [Network], and then press the [OK] key.
  5. Press the [] or [] key to select [Machine IPv4 Address], and then press the [OK] key.

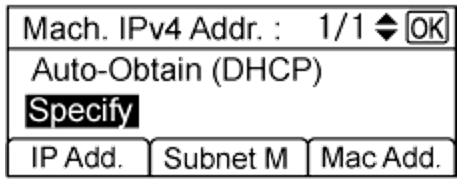

  6. Press the [] or [] key to select [Specify], and then press the selection key for [IP Add.].

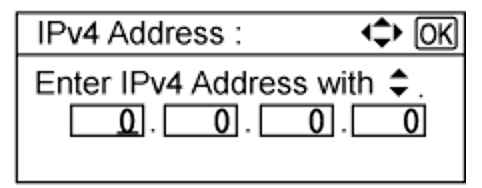

  7. Press the [] or [] key to change the value in the field where the cursor is placed.


    To get an IP address for the machine, contact your network administrator.
    The value moves by 10 if the [] or [] key is kept pressed.
    To change the value in another field, press the [] or [] key to move the cursor.

  8. Specify values in all fields, and then press the [OK] key.
  9. Press the selection key for [Subnet M].


  10. Follow Steps 10 to 11 to specify [Subnet M].

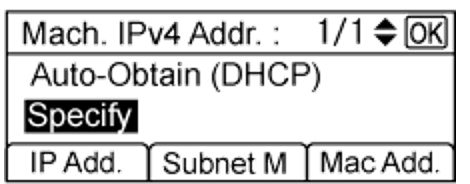

  11. After specifying the IPv4 address and subnet mask, select [Specify] and press the [OK] key.

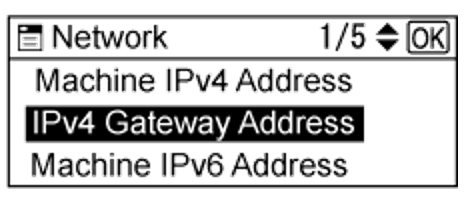

  12. Press the [] or [] key to select [IPv4 Gateway Address], and then press the [OK] key.


  13. Press the [] or [] key to change the value in the field where the cursor is placed.
  14. Specify values in all fields, and then press the [OK] key.
  15. After you have made all the settings, press the [Menu] key to return to status Ready.

The specified settings are set and the initial screen reappears.
